James E Smith (Northern) Ltd are able to machine bespoke items specifically to customer's patterns / profiles as detailed. Other profiles can be machined, minimum quantities may apply.

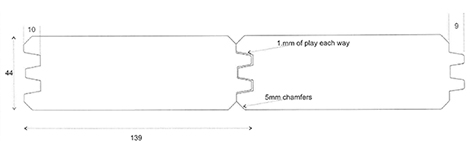

Profile Code: VJ LOG2
All sizes in millimeters tolerances + or - 0.5mm and at operator's discretion
Profile: VJ LOG2
Tools: VJ LOG2F
VJLOG20
Finished Size: 44 x 145

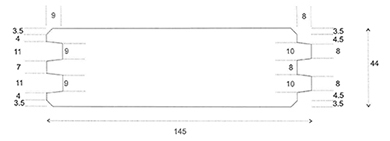

Profile Code: VJ LOG4
All sizes in millimeters tolerances + or - 0.5mm and at operator's discretion
Profile: VJ LOG4
Tools: VJ LOG4F
VJLOG40
Finished Size: 44 x 145

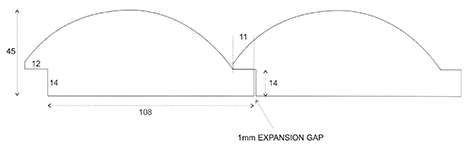

Profile Code: LOG29
All sizes in millimeters tolerances + or - 0.5mm and at operator's discretion
Profile: LOG29
Tools: 12mmREBB
LOG SP (EASER)
LOG29TOP
Finished Size: 45 x 120

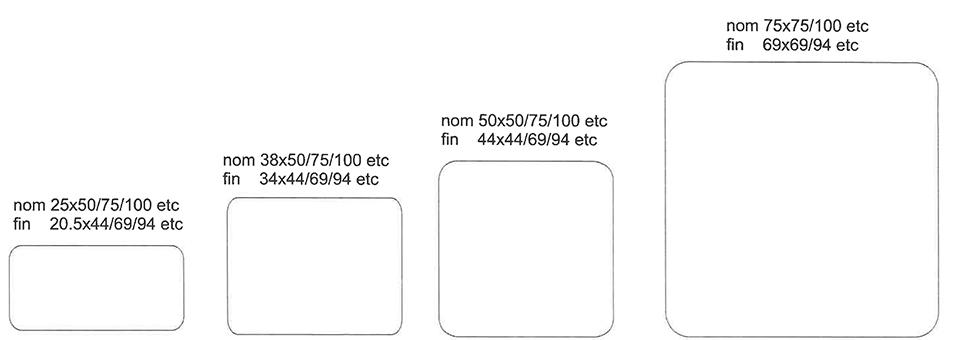

Rounds are larger in proportion by section size as seen here
