Western Red Cedar

One of the Easiest Timbers to Work with,
Its straight grain and uniform texture makes Western Red Cedar one of the easiest timbers to work. It planes and sands very clearly; it's easy to saw, machine, nail and it glues well with a range of adhesives.

Good Insulation Properties,
Western Red Cedar heartwood is renowned for its HIGH DECAY RESISTANCE and its good insulation properties, far superior to brick, concrete and steel. Structures built from Western Red Cedar will be cooler in the summer and wamer in the winter. Its very good weathering characteristics makes it POPULAR FOR EXTERIOR APPLICATIONS.

Great Finishing Properties,
The lack of pitch or resinous extractives means it has good finishing properties enabiling it to take a variety of coatings, paints and stains exceptionally well.

Weathered Apperance,
Freshly machined Clear Western Red Cedar seems to vary from a light straw colour to a dark red/brown, but the colour becomes more uniform in natural light. It is much sought after for its "weathered" appearance.

Unlikely to Warp or Twist,
Western Red Cedar has a low wood density and LOW SHRINKAGE FACTOR which means it is unlikely to warp or twist. It also has an ability to dampen vibrations, making it EFFECTIVE IN REDUCING OR CONFINING NOISE and therefore good for panelling and moulding.
IT IS DIMENSIONALLY STABLE AND HOLDS ITS PLACE WELL IN USE.

High Natural Resistance to Decay,
Western Red Cedar is reported to have a very high natural resistance to decay. It should perform well when in contact with the ground. Although the mild UK winters are the exception as they can promote decay. In terms of the durability it is long lasting when properly treated.

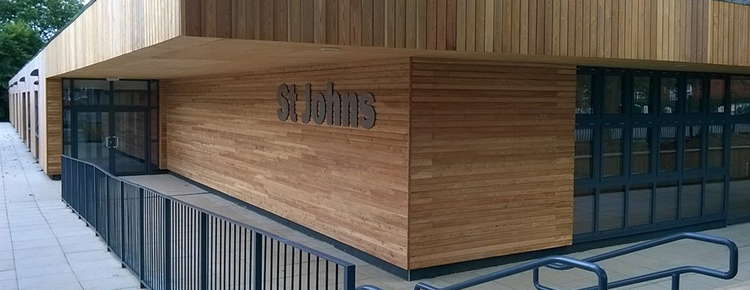

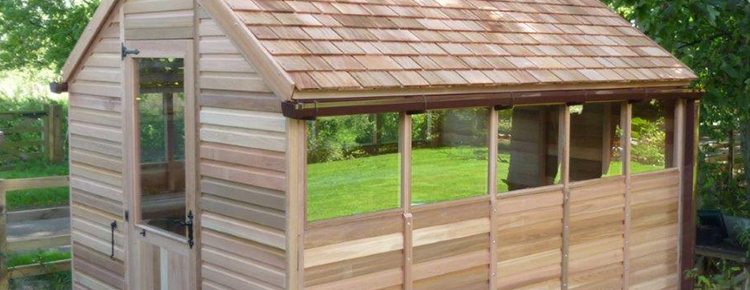

Uses: Cladding, Gates and Shingles.

Grades,
James E Smith are able to offer Clear Grade Western Red Cedar which is supplied with a smooth finish and is suitable where a more formal appearance is required. James E Smith can offer a wide variety of patterns for panelling and mouldings or we can custom produce to your requirements.

CLADDING PROFILES

These are some of our more popular standard profiles. We can also design and produce totally bespoke profiles to your requirements.

Profiles are then stored in our database for future reference - ensuring the same profile is used everytime.

LOG
25 x 100 Log | Code LOG1

25 x 100 Log
Finished size 20 x 95

Code LOG1

19 x 100 Log | Code LOG2

19 x 100 Log
Finished size 14 x 95

Code LOG2

22 x 100 Log | Code LOG4

22 x 100 Log
Finished size 19 x 95

Code LOG4

22 x 125 | Code LOG26

22 x 125
Finished size 19 x 118

Code LOG26

PTG
22 x 125 PTG | Code PTG19

22 x 125 PTG
Available in other sizes
Finished size 19 x 119

Code PTG19

PTG VJ1S
12 x 100 Planed Tongued Grooved V-jointed Backboard | Code VJ1S 8

12 x 100 Planed Tongued
Grooved V-Jointed Backboard

Finished size 8 x 95

Code VJ1S 8

16 x 125 Planed Tongued Grooved V-Jointed One Side | Code VJ1S 12

16 x 125 Planed Tongued Grooved V-Jointed One Side
Finished size 12 x 121

Code VJ1S 12

19 x 125 Planed Tongued Grooved V-Jointed One Side | Code VJ1S 14

19 x 125 Planed Tongued Grooved V-Jointed One Side
Finished size 14 x 121

Code VJ1S 14

22 x 125 Planed Tongued Grooved V-Jointed One Side | Code VJ1S 19

22 x 125 Planed Tongued Grooved V-jointed One Side
Finished size 19 x 119

Code VJ1S 19

12 x 100 PTG V-Jointed Beaded Backboard | Code VJ8+BEAD

12 x 100 PTG V-Jointed
Beaded Backboard

Finished size 8 x 95

Code VJ8+BEAD

SHIPLAPS
16 x 125 Shiplap | Code SL 12

16 x 125 Shiplap
Finished size 12 x 121

Code SL 12

19 x 125 Shiplap | Code SL 14

19 x 125 Shiplap
Finished size 14 x 121

Code SL 14

22 x 125 Shiplap | Code SL 19

22 x 125 Shiplap
Finished size 19 x 119

Code SL 19

22/25 x 100 Rebated Shiplap | Code REBSL15

22/25 x 100 Rebated Shiplap
Finished size 18 x 95

Code REBSL15

WEATHERBOARD
22 x 150 Weatherboard | Code vt9bev

22 x 150 Weatherboard
Finished size 18 x 141

Code vt9bev
